SPECIFICATIONS

Applications: lithium battery rated,lithium battery

Balance Function: Active Balanced BMS,1A Active Balanced BMS

Balance current: 1A

Battery type: Lithium-ion battery, iron oxide battery, lithium oxide battery

Bluetooth: Built-in

Brand Name: DALY

Certification: CE,RoHS

Charge and Discharge Port: Common Port BMS

Charging Current: 100A

Charging/discharging current: 80A 100A

Charging/discharging port: Public port BMS

Chip protection: Yes

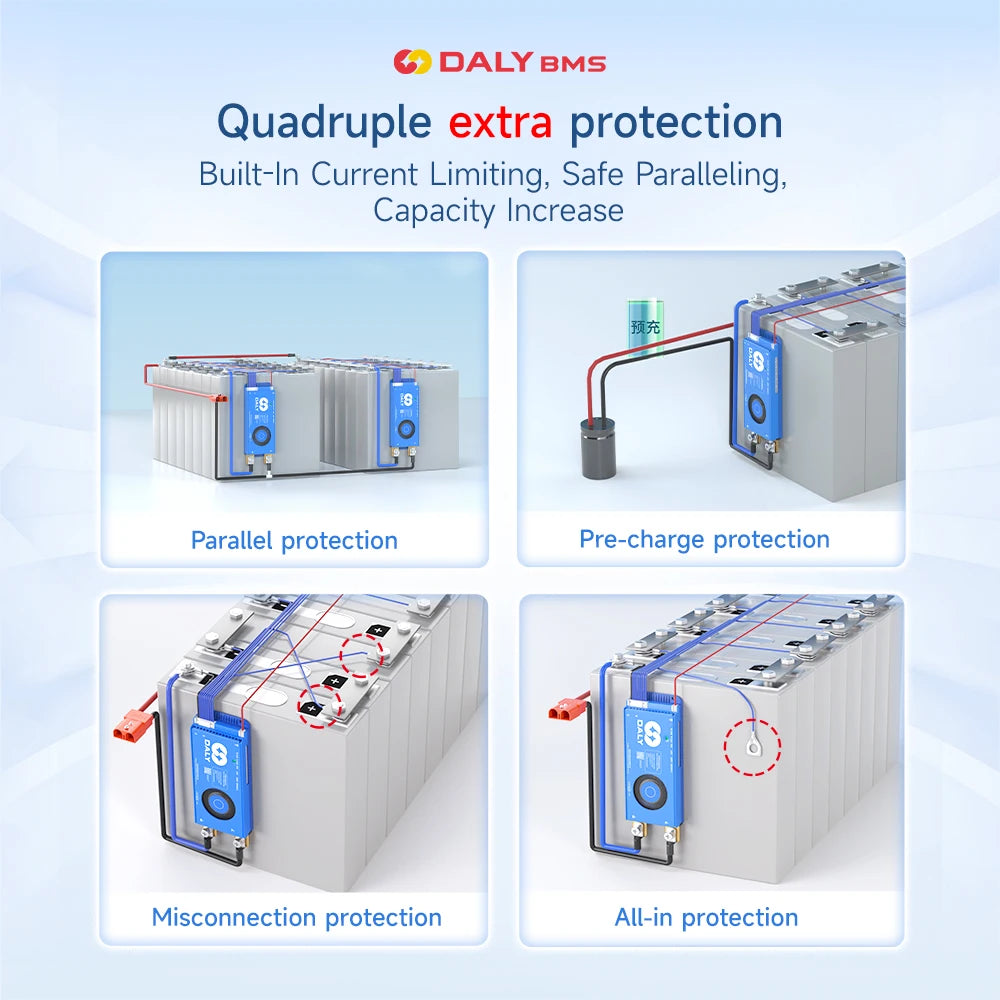

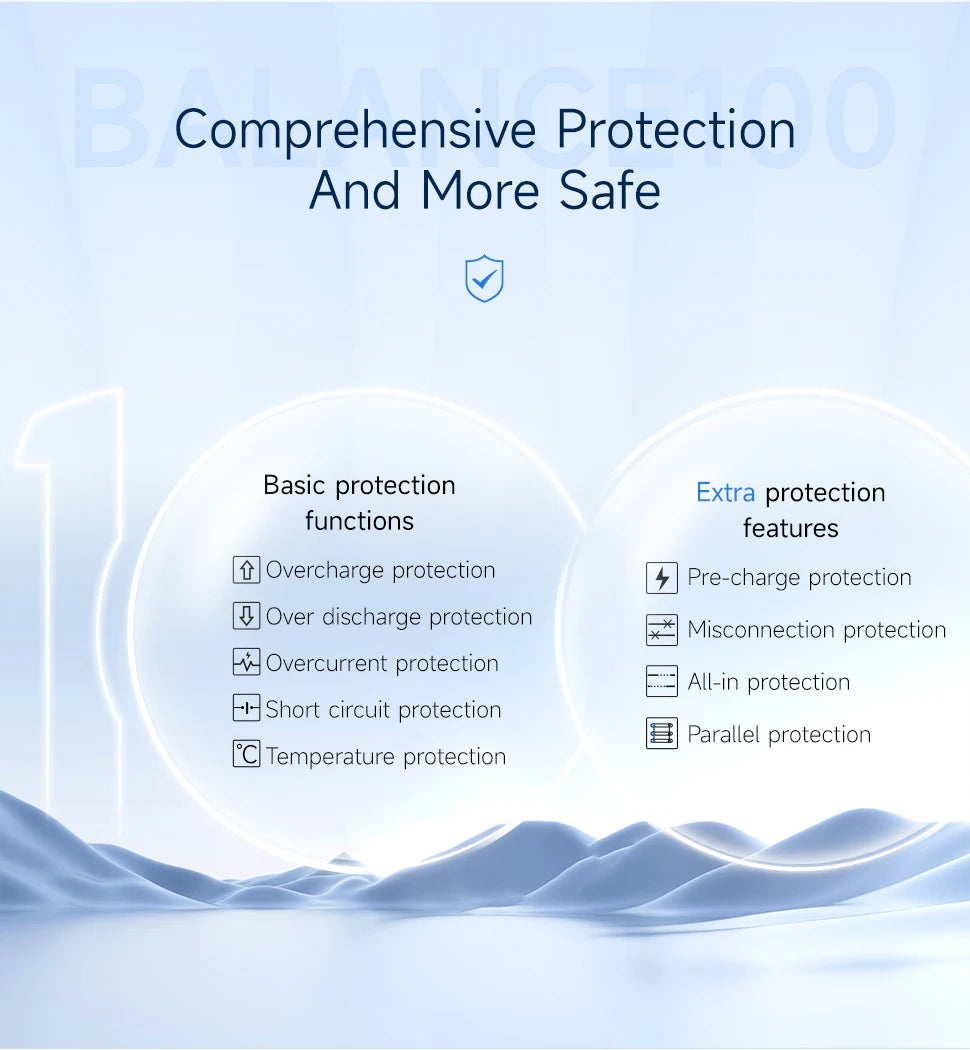

Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Handware or Smart: SMART BMS

High-concerned chemical: None

Origin: Mainland China

Support system: Android or iOS

Type: LIFEPO4 Battery BMS,LifePo4 LI-ION LTO Battery BMS

Usage Scenario: Power BMS,Energy Storage BMS,Power BMS,Energy Storage BMS,3C Digital BMS

WIFI: Connect to WiFi module

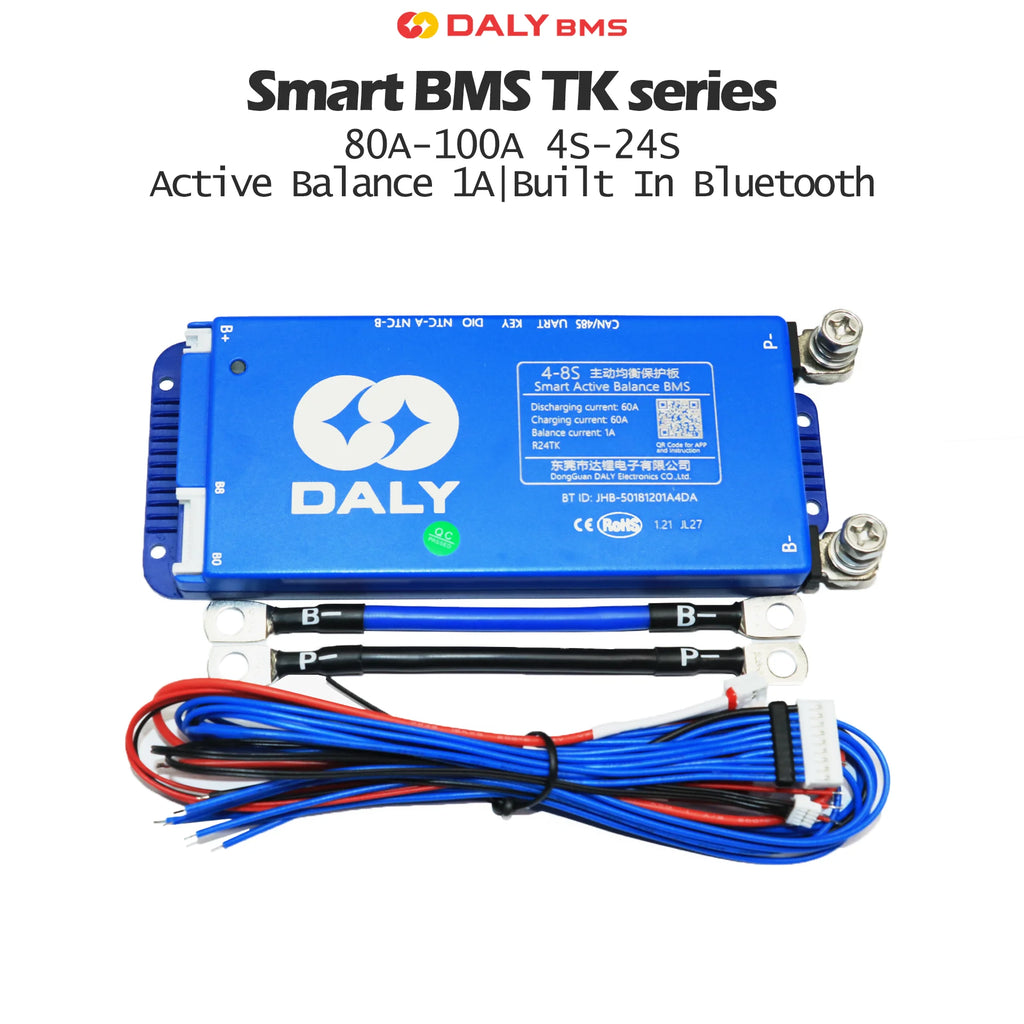

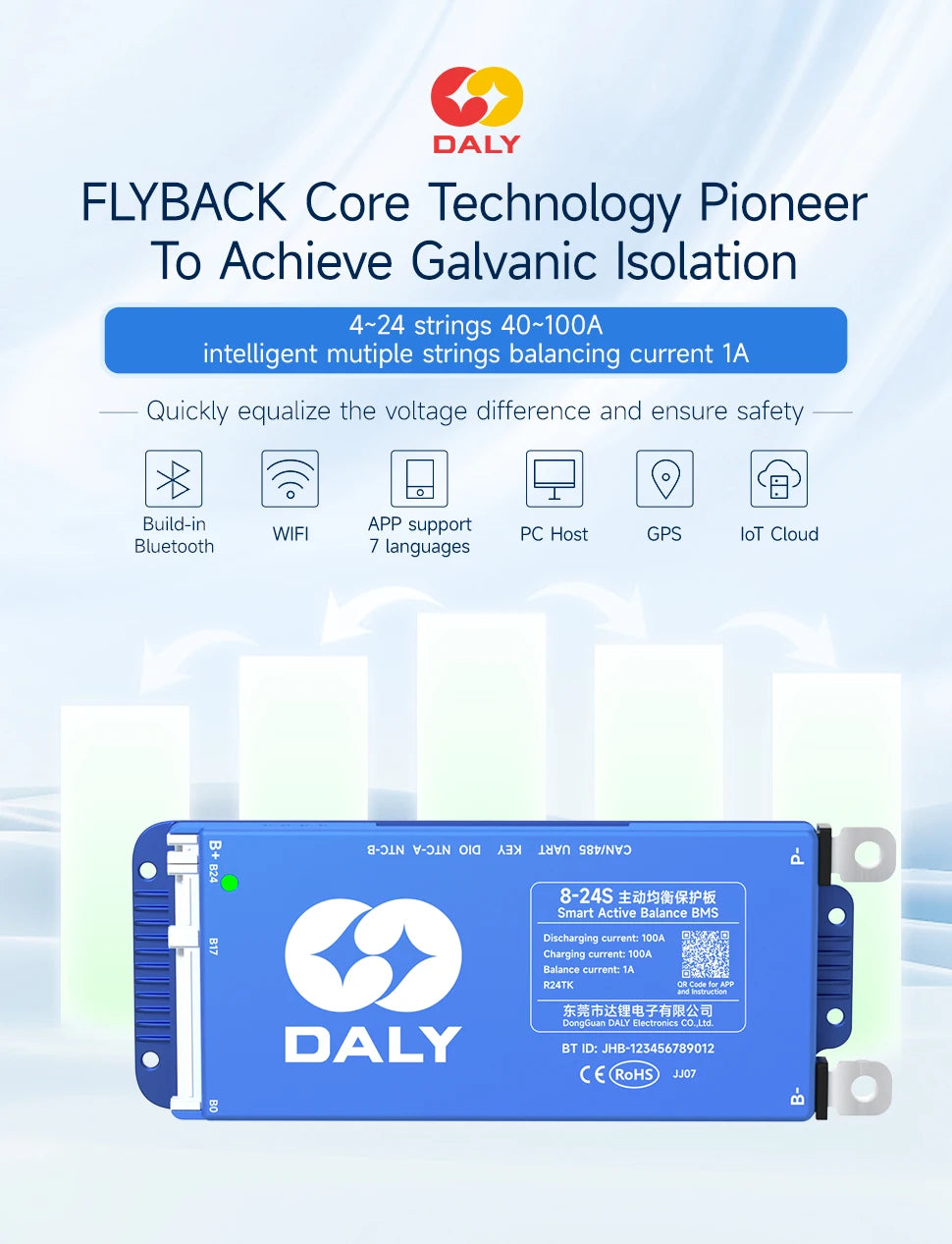

Smart Active Balance BMS

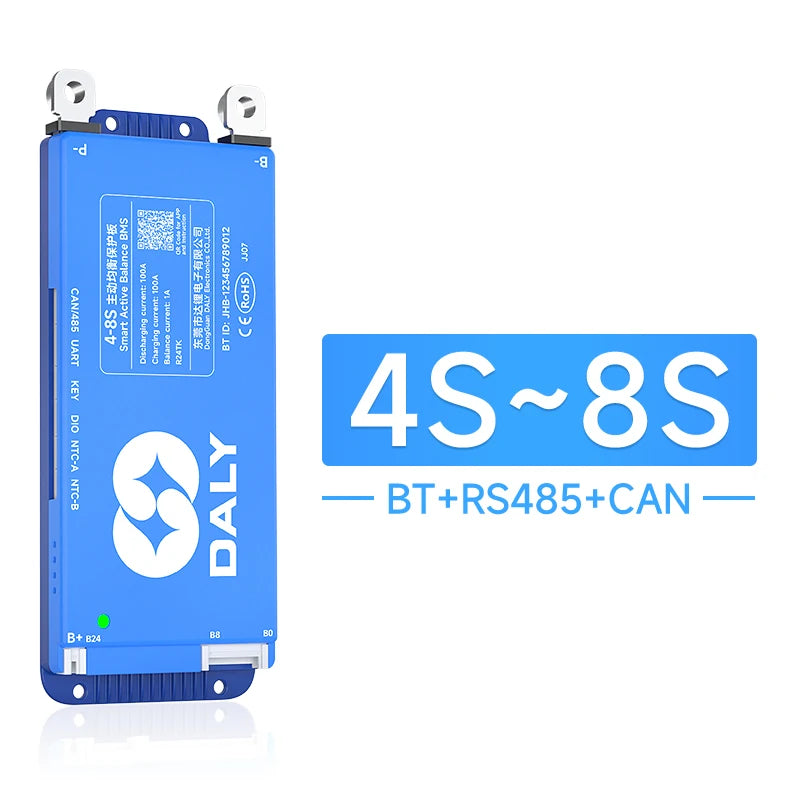

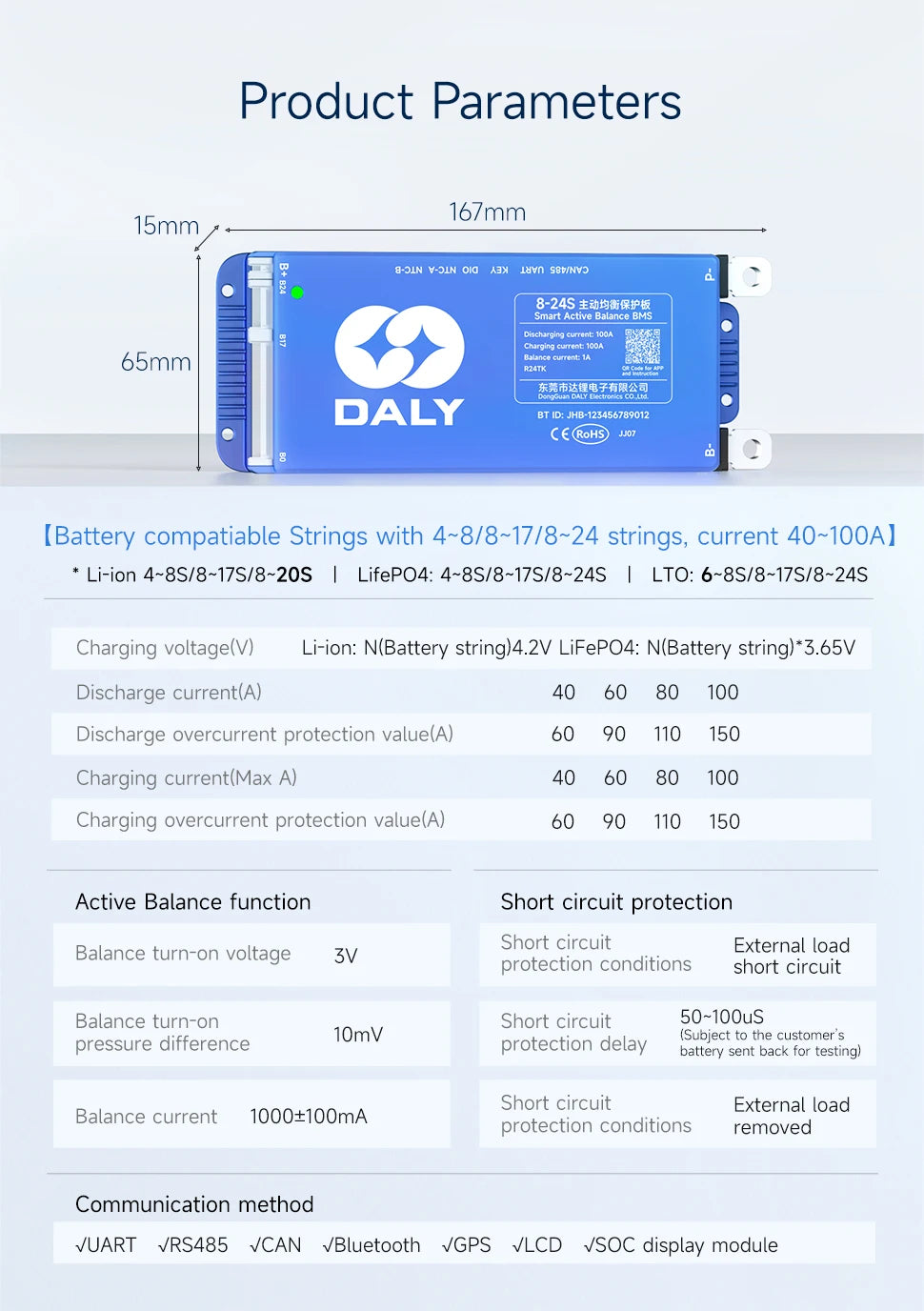

1.Smart Compatible string from 4-8S, 8-17S, 8-24S. current from 80A-100A.

2. Continuous balancing current 1A.

3. Support Lifepo4/ Li-ion/LTO battery.

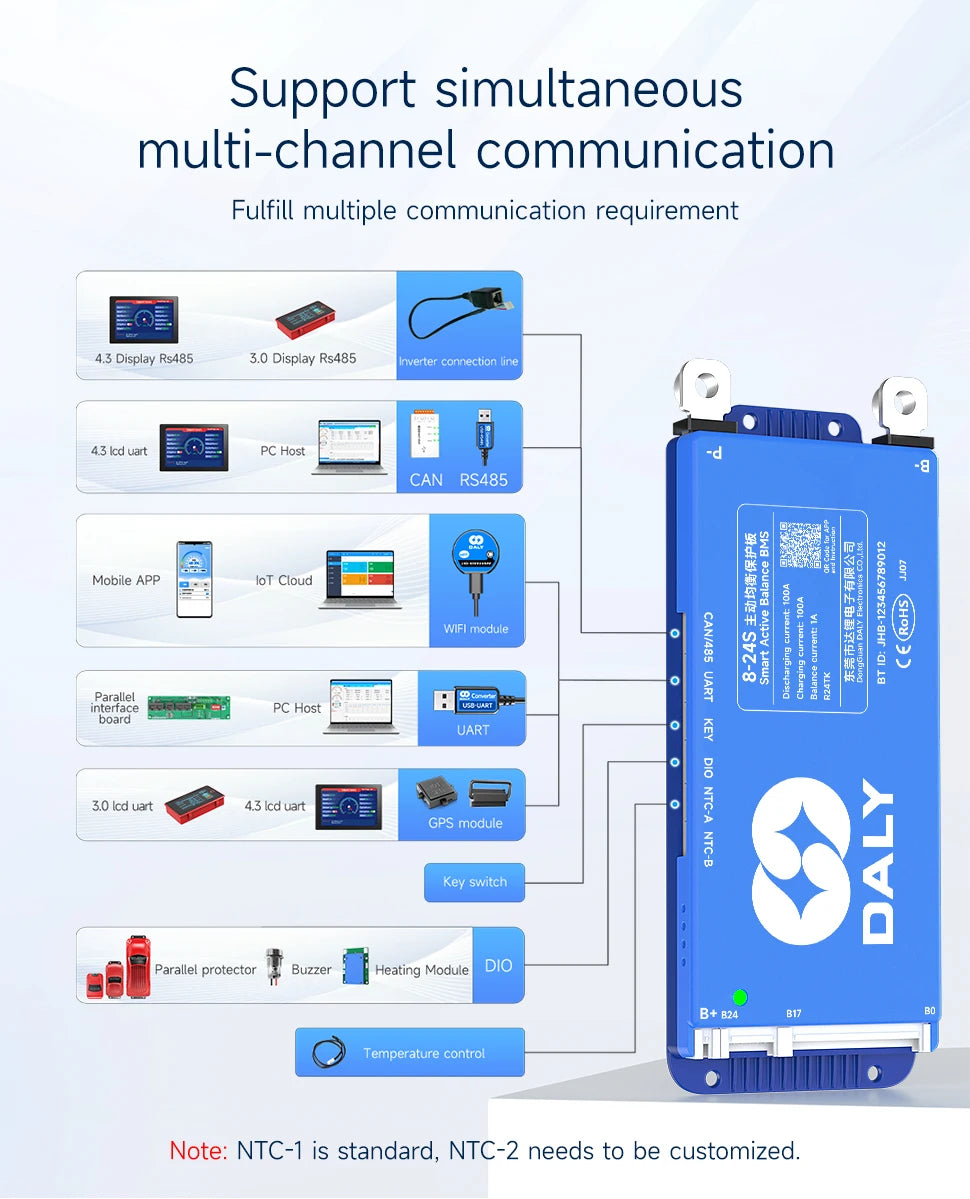

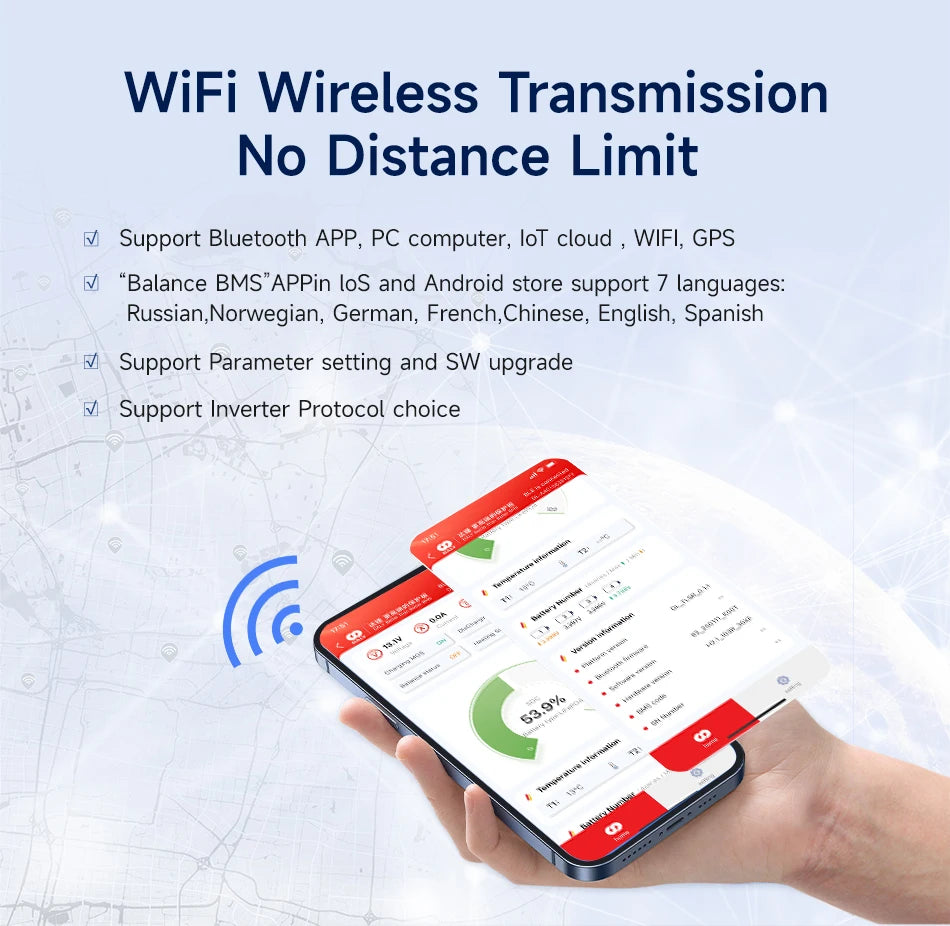

4. Bluetooth build-In, can support APP (7 languages), wifi, PC Host, IoT clould.

5.Pls select proper BMS per your requirement with compatible strings and current and BMS type.

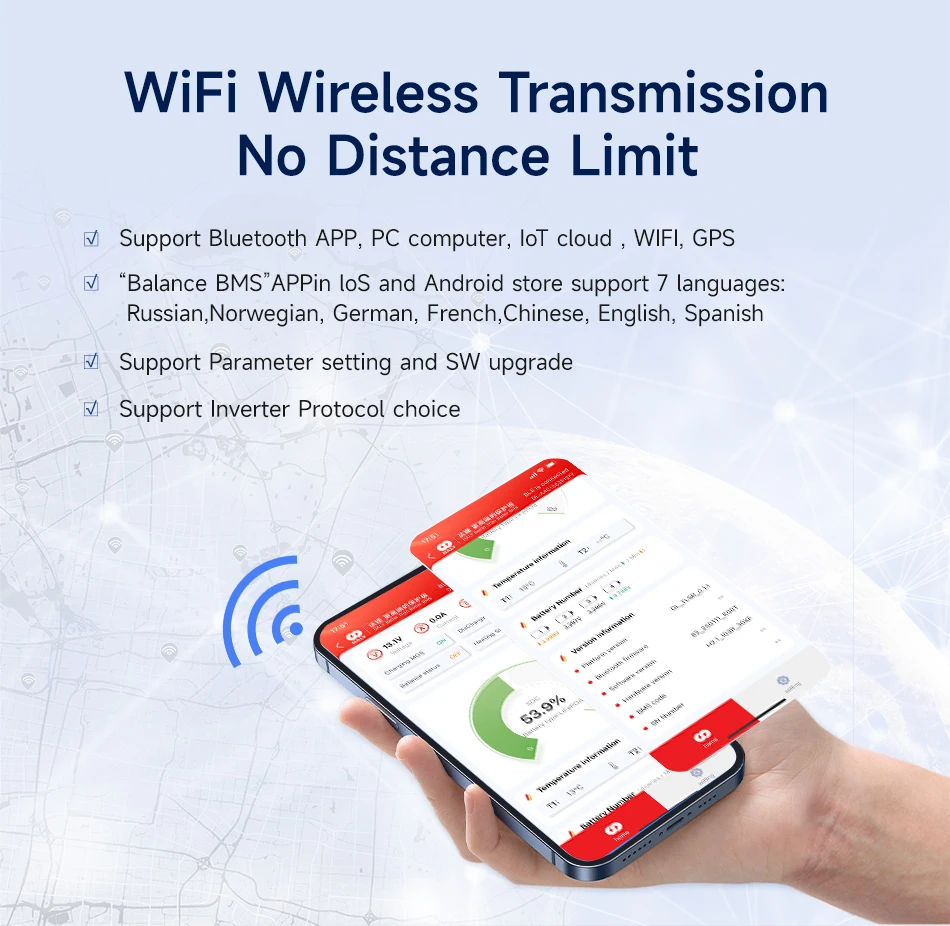

6. Wifi can show the same information which show on display or inverter at the same time.

7 4.3 LCD display: Multiple bms can be connected in parallel connection and show the information on it by switch bms.

CAN version bms+3inch lcd display  only can support one bms information shown on LCD display.

CAN version bms+4.3 inch lcd display can support Pack parallel connection and Multi BMS information shown on LCD display by switch bms.

CAN version BMS+ Inverter cable(RJ45) can support bms and inverter connection smoothly.

APP Download and Install

1.Pls search "DALY BMS" or "Smart BMS" from iOS Store and Google store and download and install.

2.Smart active balance bms has integrated BT function, it will connect to APP automatically with APP installed.

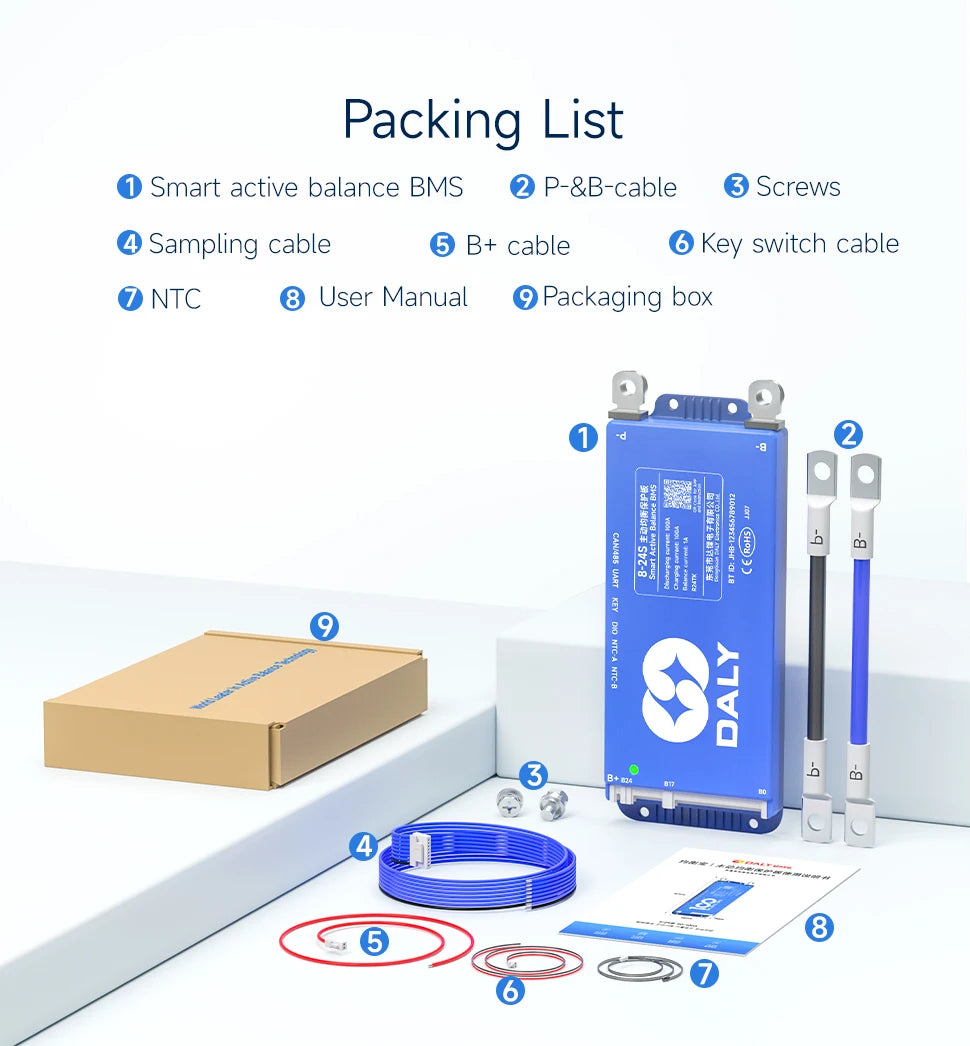

Packing List

Including total 9 items

1. Smart active balance bms*1pcs

2. P- &B- cable *2       10cm

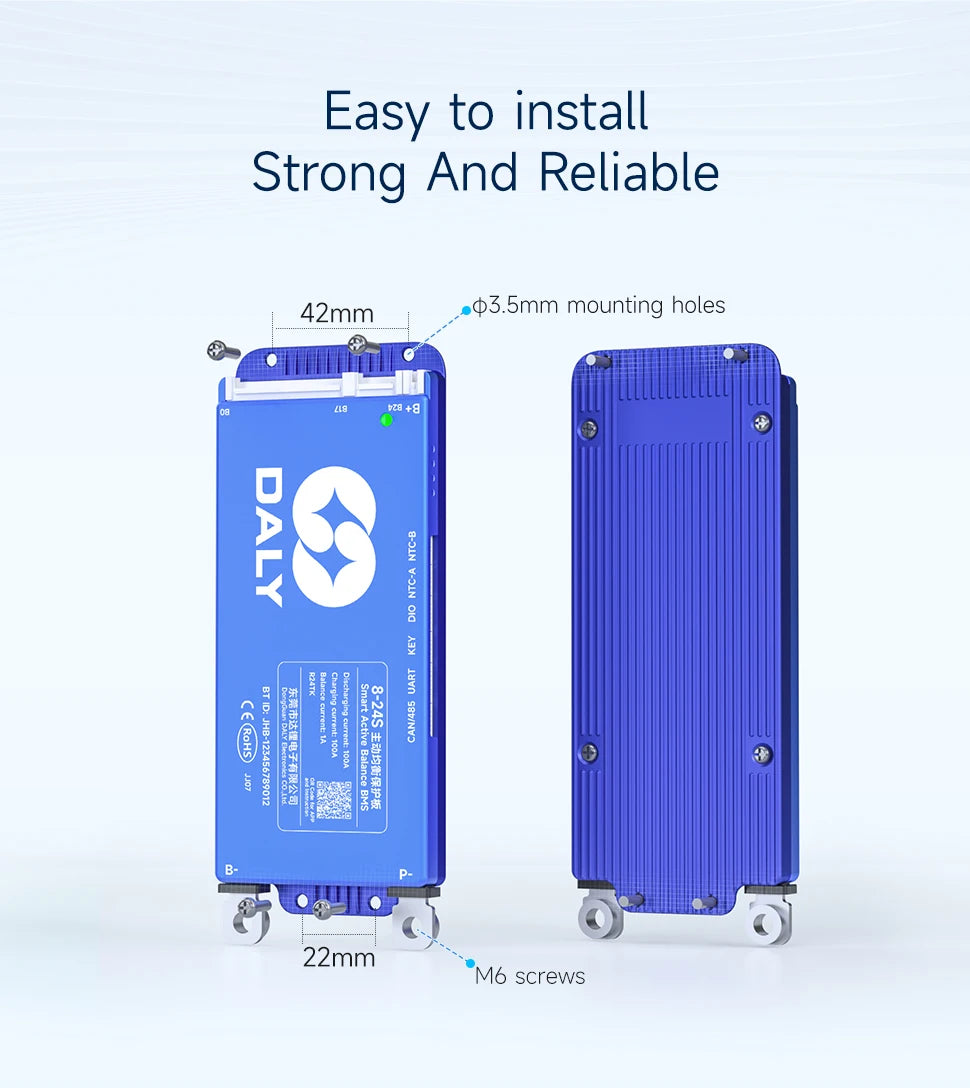

3. M6 screw*2

4. Sampling cable*1   45cm

5. B+ cable *1             45cm

6. NTC cable *1           25cm

7. User Manual*1

8. Package box*1

9. wifi modue*1 (Purchase separately)

User Guideline & After-Service

Pls visit DALY official website www.dalybms.com and click "service " bar  or scan following code to get more information.

1.SW driver

2. User Manual

3. APP & PC Host operation Manual ect.

4. Product Spec
